Manufacturer of N.R.V. - "Non-Return Valves" or Globe Valve Supplier in India

Beena Engineering Works is specialized in the design, manufacture, and supply of High Quality Globe Valves, and other Industrial Valves, Non return valves, forge steel valves, flexible hose pipes, and strainers in Gujarat, India. Globe Valves are comprehensively used throughout the energy and hydrocarbon; Best Globe Valves Manufacturer Company in India. Beena Valves manufactures ball valves in forged steel, cast steel, and stainless steel materials and guaranteed quality Globe Valves Manufacturer and Supplier in India.

Globe Valves Manufacturer in India

Our company stands out as a prominent manufacturer, supplier, and exporter of Globe Valve and Parabolic Globe Valve, extending its influence across various global and international destinations. Beena Engineering Works, an estimable Globe Valve Manufacturer in India also Non Return Valves Manufacturer in India, is your reliable source for top-notch globe valves. Globe valve manufacturers and suppliers in Mumbai, Surat, and Vadodara India to all over the world globe valves since 1989 as per the ISO 9001 : 2015 certified standards, durable quality with required multiple features. Check out the various types of globe valves offered by our company with famous brand name “FLOWRISE”:

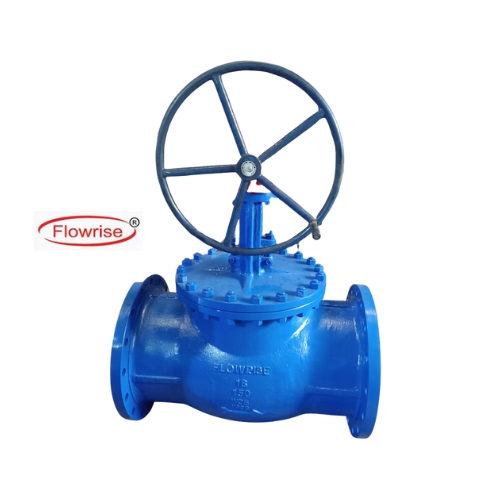

Cast Carbon Steel Globe Valves (Din ND – 40 Type)

Cast Iron Globe Valve (ND 16 Type)
S.S. Globe Valve (150 Class)
Cast steel Globe Valve are for high pressure & high temperature application for a wide range of fluids. Globe valves are available with end connections (Flanges) conforming to DIN 2545 for DIN ND – 40 seriies & sizes ranging from 1/2″ to 12″. Globe valves is also called as Non Return Valves.

Materials

  • Body, Bonnet & Gland : ASTM A-216 Gr. WCB.
  • Stem, Back Seat, Gland Follower, Body Face Rings, Disc, Disc Nut etc. : 13% Cr. Steel (Hardend & Lapped)
  • Bonnet Studs & Nuts : Carbon Steel

Specifications of Globe Valves

SizeABCDEFG
1513016459565414
20150185810575414
25160186811585414
402001888150110418
5023020102165125418
6529022122185145818
8031024138200160818
10035024162235190823
12540026188270220827
15048028218300250827
200600342853753201230

Primary Service Rating & Tempreature

ND 16 16 kg/cm2 220. C
ND 40 40 kg/cm2 400. C

Hydraulic Test Pressure

  BODY SEAT
ND 16 32 kg/cm2 16 kg/cm2
ND 40 80 kg/cm2 40 kg/cm2

Cast Carbon Steel C.I , S.S. Globe Valves (class – 150)

Globe Valves are suitable for Water, Steam, Air, Gas, Oil or Liquids with correstive properties.

Materials

  • Body, Bonnet & gland : ASTM A-216 Gr. WCB.
  • Stem, Back Seat, Gland Follower, Body Face Rings, Disc, Disc Nut etc. : 13% Cr. Steel (Hardend & Lapped)
  • Bonnet Studs & Nuts : Carbon Steel
*All Dimesions are in mm
Size A B C D E F G
15 108 11 35 89 60 4 16
20 118 13 43 98 70 4 16
25 135 14 51 114 79 4 16
40 165 17 73 127 98 4 16
50 178 19 92 152 121 4 19
65 190 22 105 178 140 4 19
80 203 24 127 191 152 4 19
100 229 24 157 229 190 8 19
125 254 24 186 254 216 8 22
150 267 25 216 279 241 8 22

Primary Service Rating & Tempreature

Class Pressure Temp.
150 150 PSIG 500°F(260°C)
300 300 PSIG 850° F(454°C)

Hydraulic Test Pressure

Class Body Seat.
150 425 PSIG 300 PSIG
300 1100 PSIG 750 PSIG

Cast Carbon Steel C.I , S.S. Globe Valves (class – 150)

Valves are available in Cast Carbon Steel end connections conforming to ND – 40/ASA 150# / ASA 300# series as well as ND – 16 series, the size range from 1/2″ to 28″.

Materials

  • Body, Bonnet : ASTM A-216 Gr. WCB.
  • Valve & Seat : 13% Cr. Steel (Hardend & Lapped)
  • Bonnet Studs & Nuts : Carbon Steel
*All Dimesions are in mm
Size A B C D E F G
15 130 16 45 95 65 4 14
20 150 18 58 105 75 4 14
25 160 18 68 115 85 4 14
40 200 18 88 150 110 4 18
50 230 20 102 165 125 4 18
65 290 22 122 185 145 8 18
80 310 24 138 200 160 8 18
100 350 24 162 235 190 8 23
125 400 26 188 270 220 8 27
150 480 28 218 300 250 8 27
200 600 34 285 375 320 12 30

Primary Service Rating & Tempreature

ND 16 16 kg/cm2 220° C
ND 40 40 kg/cm2 400° C

Hydraulic Test Pressure

Class Body Seat.
150 32 kg/cm2 16 kg/cm2
300 80 kg/cm2 40 kg/cm2
